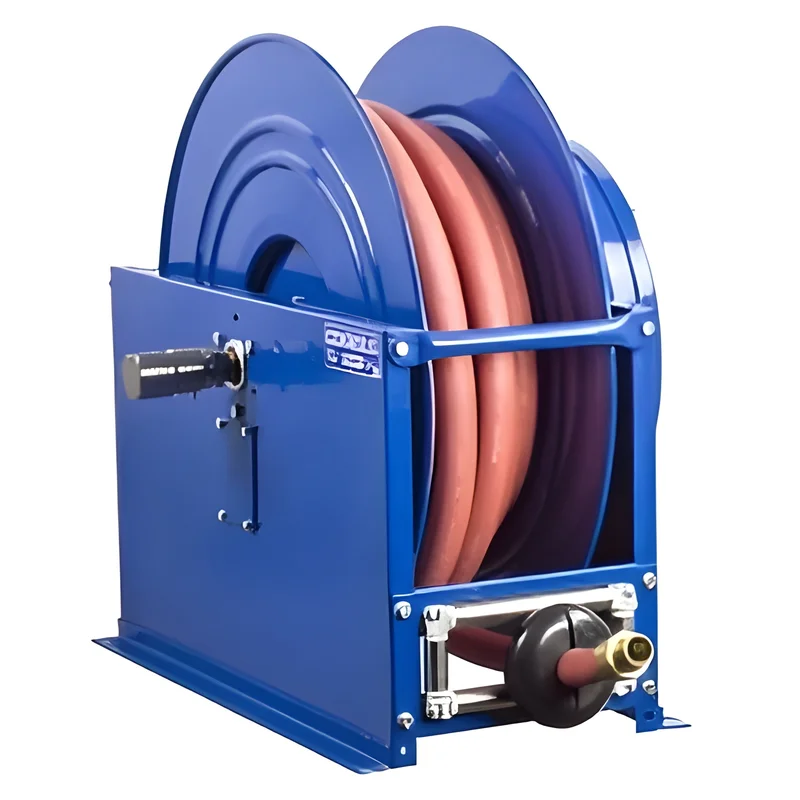

Coxreels SP Series „Single Product Delivery“ Low-Pressure Spring Driven Hose Reels – SLP-4100
SP Series „Single Product Delivery“ Low-Pressure Spring Driven Hose Reels
COXREELS® SP Series „Single Product Delivery“ spring driven hose reels are built to handle large hose diameters. Used in applications demanding large volume delivery in low and medium pressures such as fuel and water. The sturdy box-style frame has heavy duty steel cross supports to all four corners for extra strength and rigidity.
- Professional grade heavy duty steel construction
- Rolled edges & ribbed discs provide strength & safety
- Leading 2-year manufacturer’s limited warranty
- Made in the U.S.A. – Sold & Supported Worldwide
Features
- SWIVEL – Electroless nickel plated steel 90º full-flow NPT swivel onn 1″ models for simple seal maintenance and fast and easy hose installation. No need to remove the reel from its mount.
- CARTRIDGE MOTOR – Lubricated and enclosed cartridge-style motor is easily removable for safe and convenient maintenance.
- CNC SPUN DISCS – Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection and operator safety.
- BOX-STYLE DESIGN – Sturdy box-style, reinforced steel frame design provides maximum strenght and stability.
- STEEL ROLLERS – Heavy duty 1″ stainless steel pinch-proof rollers.
- OTHER FEATURES INCLUDE – long lasting, chip resistant and rust inhibiting CPC powder coat finish,and sturdy permanently lubricated precision bearings.
Specifications
| MODEL | I.D | O.D | LENGTH | HOSE | MAX PSI | SHIP WEIGHT (LBS) | OVERALL DIMENSIONS (W) (H) (L) | MOUNTING PATTERN (M) (N) | BASE (X) (Y) |
|---|---|---|---|---|---|---|---|---|---|
| SLP-4100 | 1/2″ | 3/4″ | 100′ | Yes | 300 | 111 | 18.5″(W) 20.5″(H) 22.88″(L) | 14″(M) 18.5″(N) | 15.38″(X) 21.5″(Y) |
| SLP-5100 | 3/4″ | 1 1/16″ | 100′ | Yes | 300 | 151 | 19.63″(W) 24.5″(H) 26.38″(L) | 14″(M) 22″(N) | 15.38″(X) 25″(Y) |
| SLP-550 | 3/4″ | 1 1/16″ | 50′ | Yes | 300 | 99 | 19.63″(W) 20.5″(H) 22.88″(L) | 14″(M) 18.5″(N) | 15.38″(X) 21.5″(Y) |
| SLP-575 | 3/4″ | 1 1/16″ | 75′ | Yes | 300 | 136 | 19.63″(W) 24.5″(H) 26.38″(L) | 14″(M) 22″(N) | 15.38″(X) 25″(Y) |
| SLP-625 | 1″ | 1 1/2″ | 25′ | Yes | 300 | 106 | 19.63″(W) 20.5″(H) 22.88″(L) | 14″(M) 18.5″(N) | 15.38″(X) 21.5″(Y) |
| SLP-650 | 1″ | 1 1/2″ | 50′ | Yes | 300 | 139 | 19.63″(W) 24.5″(H) 26.38″(L) | 14″(M) 22″(N) | 15.38″(X) 25″(Y) |
| SLP-675 | 1″ | 1 1/2″ | 75′ | Yes | 300 | 193 | 21″(W) 28.5″(H) 30.38″(L) | 14″(M) 26″(N) | 15.38″(X) 29″(Y) |
| SLPL-4100 | 1/2″ | 3/4″ | 100′ | No | 300 | 96 | 18.5″(W) 20.5″(H) 22.88″(L) | 14″(M) 18.5″(N) | 15.38″(X) 21.5″(Y) |
| SLPL-5100 | 3/4″ | 1 1/16″ | 100′ | No | 300 | 126 | 19.63″(W) 24.5″(H) 26.38″(L) | 14″(M) 22″(N) | 15.38″(X) 25″(Y) |
| SLPL-550 | 3/4″ | 1 1/16″ | 50′ | No | 300 | 86 | 19.63″(W) 20.5″(H) 22.88″(L) | 14″(M) 18.5″(N) | 15.38″(X) 21.5″(Y) |
| SLPL-575 | 3/4″ | 1 1/16″ | 75′ | No | 300 | 117 | 19.63″(W) 24.5″(H) 26.38″(L) | 14″(M) 22″(N) | 15.38″(X) 25″(Y) |
| SLPL-625 | 1″ | 1 1/2″ | 25′ | No | 300 | 90 | 19.63″(W) 20.5″(H) 22.88″(L) | 14″(M) 18.5″(N) | 15.38″(X) 21.5″(Y) |
| SLPL-650 | 1″ | 1 1/2″ | 50′ | No | 300 | 109 | 19.63″(W) 24.5″(H) 26.38″(L) | 14″(M) 22″(N) | 15.38″(X) 25″(Y) |
| SLPL-675 | 1″ | 1 1/2″ | 75′ | No | 300 | 148 | 21″(W) 28.5″(H) 30.38″(L) | 14″(M) 26″(N) | 15.38″(X) 29″(Y) |
| SLPL-725 | 1 1/4″ | 1 13/16″ | 25′ | No | 250 | 110 | 17.5″(W) 28.5″(H) 26.38″(L) | 14″(M) 22″(N) | 15.38″(X) 25″(Y) |
| SLPL-750 | 1 1/4″ | 1 13/16″ | 50′ | No | 250 | 123 | 18″(W) 28.5″(H) 30.38″(L) | 14″(M) 26″(N) | 15.38″(X) 29″(Y) |
| SLPL-825 | 1 1/2″ | 2 1/16″ | 25′ | No | 250 | 107 | 17.5″(W) 24.5″(H) 26.38″(L) | 14″(M) 22″(N) | 15.38″(X) 25″(Y) |
| SLPL-835 | 1 1/2″ | 2 1/16″ | 35′ | No | 250 | 128 | 18″(W) 28.5″(H) 30.38″(L) | 14″(M) 26″(N) | 15.38″(X) 29″(Y) |
| SLPL-850 | 1 1/2″ | 2 1/16″ | 50′ | No | 250 | 138 | 20″(W) 28.5″(H) 30.38″(L) | 16″(M) 26″(N) | 17.38″(X) 29″(Y) |
What Our Experts Think
- Single Product Delivery: Designed for single-fluid transfer, making it ideal for managing air, water, or light fluid systems.
- Low-Pressure Capability: Perfect for a variety of applications, including automotive, light-duty industrial use, and agricultural tasks.
- Spring-Driven Retraction: Offers smooth, automatic hose rewind, reducing manual labor and improving overall efficiency.
- Heavy-Duty Construction: Built to withstand the rigors of industrial environments, ensuring long-term reliability and durability.
- Corrosion-Resistant Finish: Provides added protection against rust and wear, suitable for both indoor and outdoor applications.
- Space-Saving Design: Keeps hoses neatly stored and organized, reducing clutter and enhancing workplace safety.
Q&A
Q: What is the Coxreels SP Series „Single Product Delivery“ Low-Pressure Spring Driven Hose Reel – SLP-4100?
A: A low-pressure, spring-driven hose reel designed for single-product delivery, providing efficient hose storage and retraction for fluid transfer tasks.
Q: What is the hose capacity?
A: This reel holds up to 100 feet of low-pressure hose, ideal for managing fluid transfer in various industries.
Q: How does the spring-driven mechanism work?
A: It features a spring-driven automatic rewind system, ensuring smooth and effortless hose retraction with minimal maintenance.
Q: What materials is the reel made from?
A: Built with durable, corrosion-resistant materials to ensure longevity and reliable performance in demanding environments.
Q: Where is this reel typically used?
A: Perfect for applications in automotive, agriculture, and other industries requiring single-product fluid delivery in low-pressure settings.
Q: What are the key benefits of this reel?
A: The easy-to-use spring-driven system and robust construction provide reliable, long-term service, making it an excellent choice for daily industrial use.
Maintenance Tips
- Model: SLP-4100
- Hose Capacity: Holds up to 100 feet of 1/2” low-pressure hose
- Pressure Rating: Designed for low-pressure applications up to 300 PSI
- Construction: Heavy-duty steel frame with a corrosion-resistant powder-coated finish for enhanced durability
- Drive Mechanism: Spring-driven automatic rewind for smooth, effortless hose retraction
- Swivel Inlet: Full-flow brass swivel for unrestricted fluid transfer
- Roller Design: Multi-position guide arm with reinforced rollers for smooth hose payout and retraction
- Mounting Type: Wall, floor, or ceiling mount for flexible installation options
- Applications: Ideal for low-pressure fluid transfer in industrial, automotive, and service environments
- Temperature Range: Operates efficiently across a wide temperature range
- Weight: Varies based on hose configuration
