Description

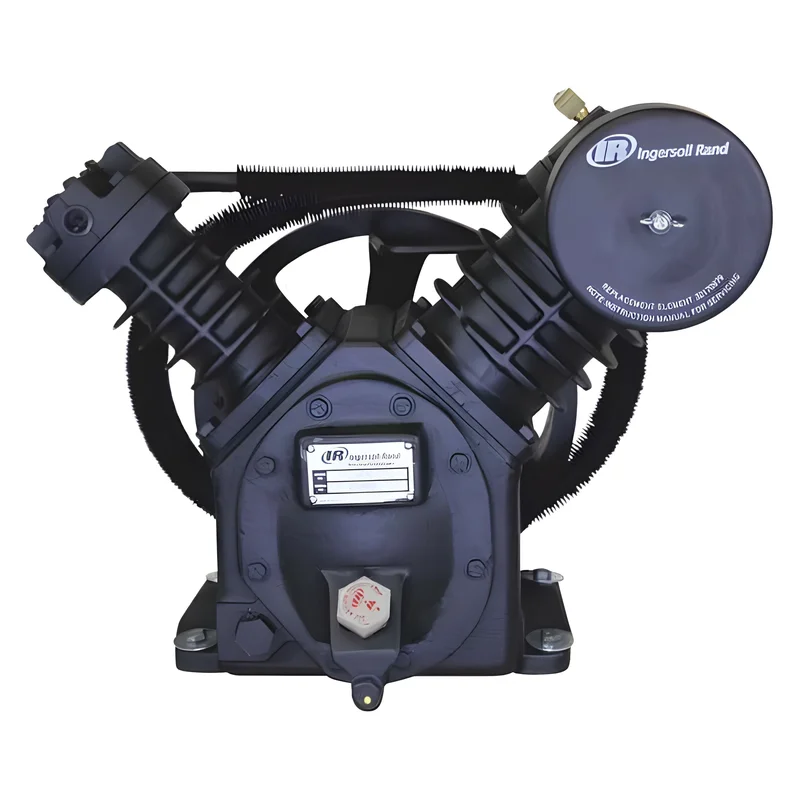

Ingersoll Air Compressor Pump, 5 hp, 7 1/2 hp, 2 Stage, 1.268 L Oil Capacity, 2 Cylinder – G0554906
Air Compressor Pump, Lubrication Type Splash Lubricated, Number of Stages 2, Maximum Output Power 5 hp, 7.5 hp, Free Air Flow Rate @ Maximum Pressure 24.0 cfm @ 175 psi, Number of Cylinders 2, Maximum Operating Pressure 175 psi, Flywheel Diameter 13 1/2 in, Flywheel Included Yes, Pump Speed 1,600 RPM, Duty Cycle Continuous, Construction Cast Iron, Groove Section A, Number of Grooves 1, Valve Type Finger, Valve Material Stainless Steel, Cylinder Material Cast Iron, Rotation CW
Key Features
- HP5 hp, 7 1/2 hp
- Number of Stages2
- Lubrication TypeSplash Lubricated
- Number of Cylinders2
- Max. Pressure175 psi
What Our Experts Think
-
Heavy-duty 2-stage air compressor pump suitable for industrial and workshop use.
-
Available in 5 hp and 7.5 hp configurations for flexible power requirements.
-
Two-cylinder design delivers consistent airflow and higher efficiency.
-
1.268 L oil capacity ensures reliable lubrication and long-lasting performance.
-
Durable construction built for continuous, demanding operation.
-
Optimized for pairing with stationary air compressor systems.
Q&A
-
Q: What horsepower options are available?
A: 5 hp and 7.5 hp for different performance needs. -
Q: What does 2-stage mean?
A: Air is compressed in two stages, increasing pressure and efficiency. -
Q: How many cylinders does it have?
A: Two-cylinder design for reliable and consistent airflow. -
Q: What is the oil capacity?
A: 1.268 liters to ensure proper lubrication and longevity.
Maintenance Tips
-
Check and maintain oil levels regularly to ensure smooth operation.
-
Inspect valves and gaskets periodically for wear or leaks.
-
Clean intake filters to maintain optimal airflow.
-
Monitor pump temperature during extended operation.
-
Follow manufacturer guidelines for periodic servicing and component replacement.
