Description

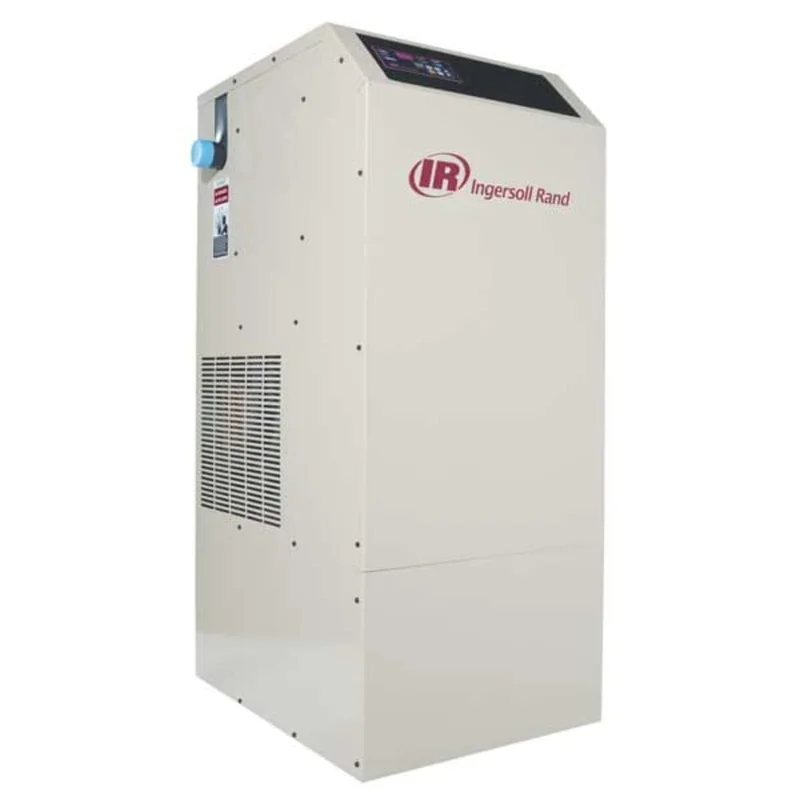

Ingersoll Rand Compressed Air Dryer, 300 CFM, 60 HP, 460V – 1761765918490_292
Refrigerated Air Dryer, ISO Class 4, Maximum Flow Rate 300 cfm, Voltage 460V AC, Phase Three, Air Inlet Size 2 in, Air Inlet Type NPT, Air Inlet Gender Female, Maximum Operating Temperature 120 Degrees F, Power 2.11 kW, Dew Point 38 Degrees F, Series Non- Cycling Refrigerated, Air Outlet Size 2 in, Air Outlet Type NPT, Cycling Type Non-Cycling, Drain Included Yes, Drain Type Auto Drain, Filter Included Yes
Features
- IncludesPanel Filter
- CFM300
- PhaseThree
- Voltage460V AC
- Pipe Size2″ NPT
*]:pointer-events-auto [content-visibility:auto] supports-[content-visibility:auto]:[contain-intrinsic-size:auto_100lvh] scroll-mt-[calc(var(–header-height)+min(200px,max(70px,20svh)))]“ dir=“auto“ data-turn-id=“request-WEB:82000aa2-ed96-4878-9d85-aae45d514237-55″ data-testid=“conversation-turn-4″ data-scroll-anchor=“true“ data-turn=“assistant“>
What Our Experts Think
-
The Ingersoll Rand Refrigerated Air Dryer delivers reliable moisture removal for demanding compressed air systems.
-
With a 300 CFM capacity and 60 HP compatibility, it’s ideal for medium to large industrial setups.
-
Its non-cycling refrigeration system ensures consistent dew point control at 38°F for optimal air quality.
-
The built-in auto drain and integrated filter simplify maintenance and protect downstream equipment.
-
Designed for efficiency, it operates on 460V three-phase power and maintains ISO Class 4 air purity.
Q&A
Q: What is the dew point rating of this air dryer?
A: It maintains a consistent dew point of 38°F.
Q: Is this a cycling or non-cycling dryer?
A: It’s a non-cycling refrigerated air dryer for continuous operation.
Q: Does it include a drain system?
A: Yes, it comes with an automatic drain for efficient moisture removal.
Q: What is the maximum airflow capacity?
A: The unit handles up to 300 CFM.
Q: What kind of power does it require?
A: It runs on 460V AC, three-phase power.
Maintenance Tips
-
Inspect and clean the air filter regularly to maintain ISO Class 4 air quality.
-
Ensure the auto drain is functioning properly to prevent water buildup.
-
Keep condenser coils free from dust for efficient heat exchange.
-
Verify dew point performance periodically to ensure proper moisture control.
-
Schedule professional servicing annually for optimal system reliability
Reviews
There are no reviews yet.
