Description

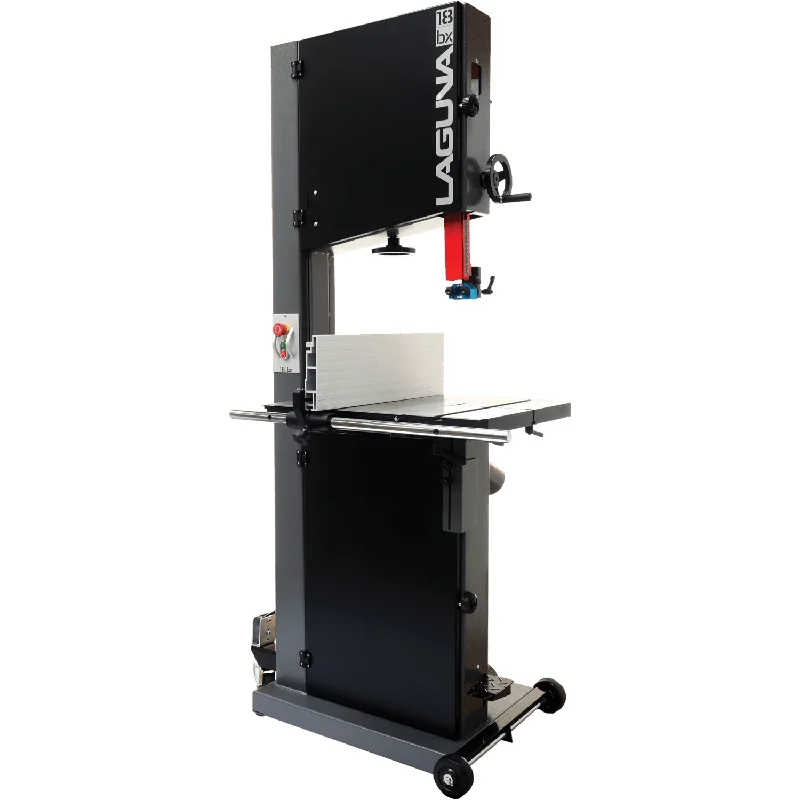

Laguna Tools Classic Bandsaw 18|bx – MBAND18BX2203
The 18|BX Bandsaw follows in the traditions of high-performance and reliability established by the widely-used Laguna Tools 14|12 and 14|bx models. The 18|bx is built around a 3HP, 220V motor and 145″ (368 cm) blade for consistent results, cut-after-cut, regardless of wood material. (Shown with optional mobility kit)
Features
- Motor: 3HP, 220V, 1 Ph. 12 Amp.
- Recommended Breaker: 20 Amp.
- Magnetic Starter
- Min-Max Blade Width: 1/8″ – 1-1/4″
- Resaw Capacity: 16″
- Throat: 18″
- Blade Length: 145″
Specifications
Motor:
- Type: 3HP, 220V, 1 Ph., 12 Amp.
- Recommended Breaker: 20 Amp
- Magnetic Starter: YES
Blade:
- Min-Max Width: 1/8″ – 1-1/4″
- Length: 145″
Resaw Capacity:
- Height: 16″
Throat:
- Dimensions: 18-7/32″
Table:
- Size: 20″ x 26″
- Tilt: -6°, +45°
- Quick-Release Tension: YES
Fence:
- Type: Hi/Low Anodized Aluminum
- Dimensions: 22-½″ x 5-¾″ x ½″
Table Height:
- Distance from floor: 38″
Dust Ports:
- Size: 4″ x 2
Overall:
- Height: 77-¾″
- Base Dimensions: 27″ x 20″
- Overall Dimensions: 36″ x 30″
- Shipping Box Dimensions: 36″ x 84″ x 30″
- Weight: Net/Ship: 410/460 lbs
Additional Features:
- Cast iron table
- Ceramic blade guides
- Ball bearing blade guides
- Magnetic on/off switch
- Blade tension indicator
- Optional light (12 Volt/50 Watt, swivels 220° and tilts vertically 320°)
Optional Accessory – 18|bx Wheel System
- Foot Operated
- 360° Omni-Directional
- Rubber-Coated Wheels
- Adjustable Rubber Pads
- Oilite Bronze Bushing Allows For Less Friction & Longer Life
- Easy Install With No Drilling Required
- Pedal Raises & Lowers Front Wheel
- Wheels Mounted Outside Frame To Maximize Stability
Optional Accessory – Pro Light System
- Swivels 220°
- 12 Volt/50 Watt
- Tilts Vertically 320°
- Built-In Transformer
- Independent On/Off
- Ribbed Aluminum Case
- Halogen Hi-Intensity Light
- Bright, Glare-Free Flood Light
- Designed for Even Light Distribution
- Reinforced Glass, Dustproof Design
- Top and Side Cabinet Mounting Position
Video
Manuals
- 18|BX Bandsaw Manual
- 18|BX Parts Manual
What Our Experts Think
-
Powerful & Precise: The 18|bx delivers 3 HP of reliable cutting power, ideal for hardwood resawing and thick stock.
-
Generous Cutting Capacity: Offers 16″ resaw height and 18″ throat for large panels or veneers.
-
Durable Build: Heavy cast-iron wheels, rigid frame, and large 20″ × 26″ table ensure stability and accuracy.
-
Smart Design: Features quick-release blade tension, ceramic guides, and foot brake for safety and ease of use.
-
Dust-Ready & Shop-Efficient: Dual 4″ dust ports keep the work area clean during long sessions.
Q&A
Q: What is the resaw capacity?
A: 16″ vertical resaw height handles large, thick boards with ease.
Q: What motor power does it use?
A: A 3 HP, 220 V single-phase motor for strong and consistent cutting performance.
Q: What size blades does it support?
A: Accepts 145″ blades from 1/8″ to 1-¼″ wide.
Q: How big is the work table?
A: The precision-ground cast-iron table measures 20″ × 26″ and tilts from –6° to +45°.
Q: Does it include dust collection ports?
A: Yes, two 4″ ports for efficient dust removal.
Maintenance Tips
-
Clean after every use: Remove sawdust from the wheels, guides, and table to prevent buildup.
-
Check blade tension: Always verify tracking and tension before operation for straight, smooth cuts.
-
Lubricate guides and bearings: Apply light oil to maintain consistent movement and reduce friction.
-
Inspect wheels and tires: Replace or clean if buildup affects blade tracking.
-
Keep dust ports clear: Ensure airflow remains unobstructed for safe and efficient operation.
