Laguna Tools Industrial Compact 25″ Metal Wide Belt Sander MW25C – MSANWB25X60-1K-7.5-0197-1-Schneller Versand

Description

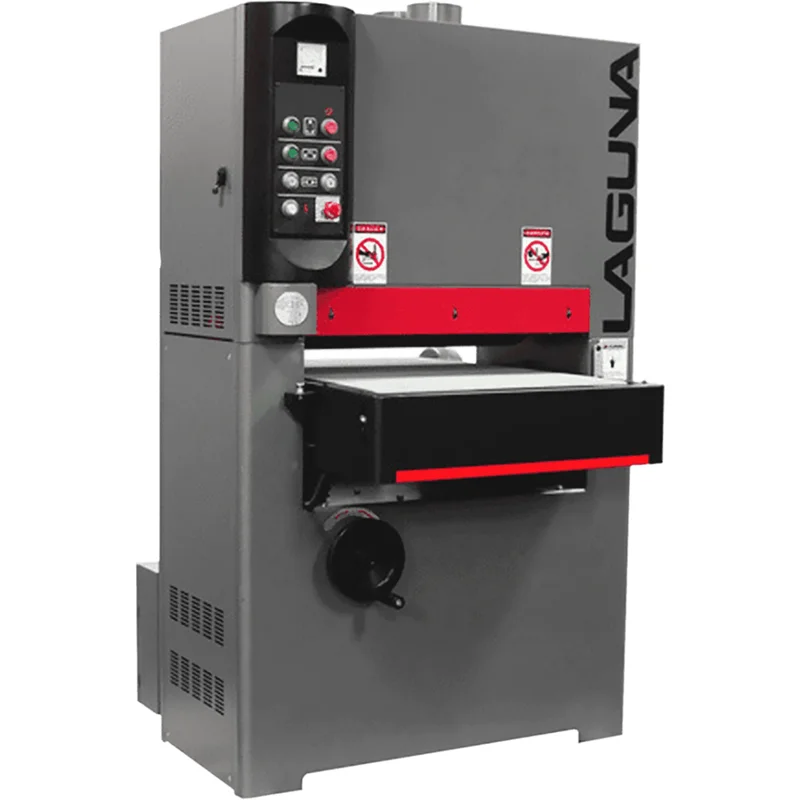

Laguna Tools Industrial Compact 25″ Metal Wide Belt Sander MW25C – MSANWB25X60-1K-7.5-0197-1

Offering metal deburring, sanding, and texturing, the Compact Line of Metal Wide Belt Sanders from LAGUNA gives a new level of production perfection. With a 7.5 to 10 hp motor (Single Phase), 25″ to 37″ machine widths, electronic table elevation control, you can get the exact finish you need.

Features

• Single Sanding Belt
• 7.5hp Main Motor (Single Phase)/1HP Feed Speed
• Belt Size: 25″ x 60″
• Sanding Max Width: 24-¾″
• Sanding Drum Diameter: 8″
• Dust Port Size: 5″ x 2

An Overview Of The ENDURO Metal Sanders

Follow along as John Geyen, our resident Sanding Expert, gives a detailed overview of the machines, their mechanical specs, and before and after examples from heavy dross removal to fine polishing.

What The ENDURO Can Do

From cleaning heavy dross to achieving a spotless finish, the ENDURO is the only choice for metal sanding and deburring.

Specifications

• Machine Width: 25″

• Max Sanding Width: 24 3/4″

• Sanding Belt Size: 25″ x 60″

• Net Weight: 1344 lbs

• Ship Weight: 1565 lbs

• Voltage: 220V, 1 Phase, 60hz

• Foot Print: 39 3/8″ x 19 5/16″
• Conveyor Height at Lowest Setting: 31.9″ (Table Height 37.4″)
• Cabinet Steel: YES
• Operating Air Pressure: 60 PSI

• Fully CSA: YES

Motors:

• Main Motor: 7.5HP (Single Phase)

• Feed Speed: 1HP (Single Phase)

• Table Lifting Motor: 0.33 (Single Phase)

Sanding:

• Sanding Drum Diameter: 8″

• Length of Sanding Drum: 24.4″

• Sanding Drum RPM: 1720

• Speed Settings: 2 (Low/High): 20 fpm / 30 fpm

• Sanding Belt Oscillation: YES

• Sanding Belt Motor Break: YES

Dust Collection:

• Dust Port Size: 5″

• Number of Dust Ports: 2

Additional Features:

• Programmable Logic Control (PLC): YES (Digital Readout)

• Automatic Thickness Control: YES (Thicknessor)

• Max Sanding Height: 6″

• Min Sanding Height: 1/8″

Video

What Our Experts Think

• The Laguna Tools Industrial Compact 25″ Metal Wide Belt Sander MW25C delivers precise sanding in a compact footprint.

• Equipped with a 7.5 HP main motor and 1 HP feed motor for reliable metal finishing.

• 25″ × 60″ belt with adjustable oscillation ensures smooth, consistent surface finish.

• Features digital height readout and automatic thickness control for repeatable results.

• Ideal for shops needing high-quality sanding without a large machine footprint.
