Description

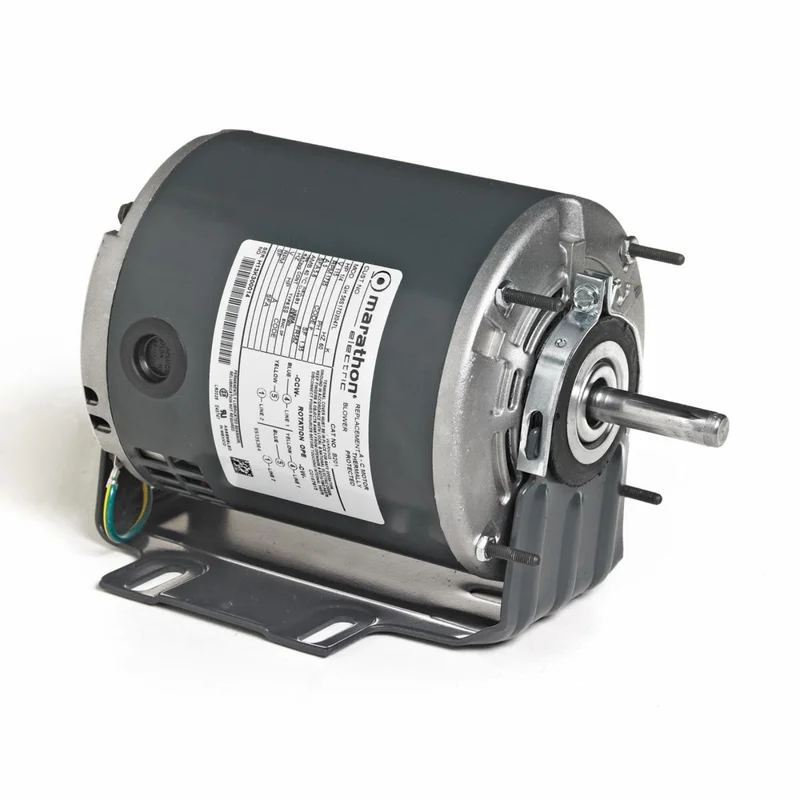

Marathon MD118 56 Frame Open Drip Proof 56C34D2106 Belt Drive Motor 1 hp 3600 RPM 115/208-230 VAC 1 Split Phase 1 Speed Ball Bearing Resilient Ring Mount – MD118
The Marathon MD118 is a 56 frame, open drip proof belt drive motor designed for various industrial applications. With a 1 hp capacity, this motor operates at 3600 RPM and supports 115/208-230 VAC power supply. It features a single split phase and one-speed operation with ball bearings and a resilient ring mount.
- 1 horsepower capacity
- 3600 RPM speed
- Supports 115/208-230 VAC power supply
This motor is suitable for a range of industrial and commercial applications, offering reliable performance and durability. Key features include a resilient base, automatic overload protection, and single-phase operation.
Specifications
- Brand: Marathon Electric
- Model: MD118
- Electrical Type: Cap Start
- Horsepower: 1 hp
- Frame: 56
- Diameter: 6.5
- Enclosure: ODP (Open Drip Proof)
- Phase: Single
- Voltage: 115/208-230
- Rotation: REV (Reversible)
- Overload Protection: Auto
- Material: Rolled Steel
- Mounting: Resilient Base
- Amperage: 12.0/6.2-6.0
- Shaft Type: Single
What Our Experts Think
-
1 HP belt drive motor engineered for reliable industrial and commercial performance.
-
3600 RPM, single-speed for fast, efficient operation.
-
115/208-230 VAC, single-phase design offers flexible installation.
-
56 frame Open Drip Proof (ODP) with ball bearings ensures durability.
-
Resilient ring mount reduces vibration and extends motor life.
Q&A
Q: What is the horsepower of this motor?
A: 1 HP, ideal for light-to-medium duty industrial applications.
Q: What type of motor is this?
A: Belt drive, ODP, single-phase, single-speed with ball bearings.
Q: What voltage does it operate on?
A: 115/208-230 VAC, single-phase.
Q: What is the motor speed?
A: 3600 RPM for high-speed, efficient performance.
Maintenance Tips
-
Keep motor and belt free of dust and debris for optimal performance.
-
Inspect belt tension and alignment regularly.
-
Lubricate bearings as per manufacturer’s recommendations.
-
Check electrical connections and mounting for safety and stability.
