Description

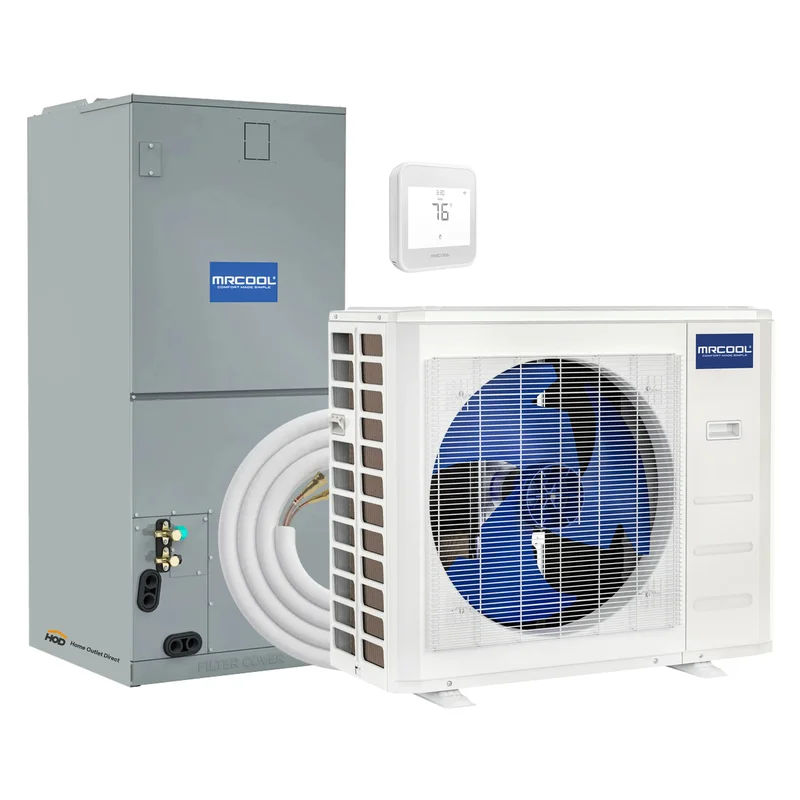

MRCOOL VersaPro 2nd Gen Central Split System with 24K BTU, 2 Ton, 18.1 SEER2, Heat Pump Condenser and Ducted Air Handler with 15 Ft. R-454B No-Vac Lineset – MVP-24-HP-230A15
The MRCOOL Central Split System Bundle is a heating and cooling system you need to stay warm in winter, cool in summer, and energy efficient all year long.
Features
-
MRCOOL VersaPro 2nd Gen 24K BTU, 2 Ton, 18.1 SEER2 Central Ducted Heat Pump Condenser
-
MRCOOL VersaPro 2nd Gen 24K BTU, 2 Ton Central Ducted Air Handler
-
MRCOOL 15 Ft. R-454B No-Vac Lineset
-
MRCOOL Smart Thermostat
1. MRCOOL VersaPro 2nd Gen 24K BTU, 2 Ton, 18.1 SEER2 Central Ducted Heat Pump Condenser (MVP-24-HP-C-230A00-O)
-
2 Ton
-
SEER2 rating of 18.1 and an HSPF4 rating of 9.7
-
R-454B refrigerant
-
10-year warranty on the compressor and parts
2. MRCOOL VersaPro 2nd Gen 24K BTU, 2 Ton Central Ducted Air Handler (MVP-24-HP-MUAH-230A00-O)
-
2 Ton
-
SEER2 rating of up to 18.3
-
R-454B refrigerant
-
10-year warranty
-
Flexible installation options, including upflow, downflow, and horizontal left or right configurations
3. MRCOOL 15 Ft. R-454B No-Vac Lineset (NV15-3834-O)
-
Kink Resistant – Precharged
-
Simple Secure Quick Connect
-
UV Protected Insulation
-
Works With: VersaPro 2nd Gen – Central Ducted Hyper Heat 2nd Gen
4. MRCOOL Smart Thermostat (MST04)
-
Ensure ideal temperature with presets for Home, Away, and Sleep that perfectly align to match your specific needs and preferences.
-
One App for All Your HVAC Systems
-
Global Control for Remote Accessibility
-
Works with Alexa, Google, Siri, and MRCOOL® Link
Specifications
| Condenser | |
|---|---|
| Dimensions | 13.46″ D x 26.5″ H x 35.04″ W |
| SEER2 | 18.1 |
| Tonnage | 2 |
| Cooling Capacity (BTU) | 24000 |
| Heating Capacity (BTU) | 26000 |
| Voltage (V) | 208-230 |
| Refrigerant Type | R454B |
| Air Handler | |
| Dimensions | 17.52″ D x 45″ H x 21.02″ W |
| Tonnage | 2 |
| Cooling Capacity (BTU) | 24000 |
| Heating Capacity (BTU) | 26000 |
| Voltage (V) | 115/208-230 |
| Lineset | |
| Dimensions | 30″ D x 30″ H x 5″ W |
| Refrigerant Type | R-454B |
| Refrigerant Volume (Oz) | 2.11 |
| Line Set Length | 15ft |
| Lineset Fitting Type | Quick-Connect |
| Liquid Line Size | 3/8 |
| Suction Line Size | 3/4 |
What our Experts Think
-
Efficient Heating & Cooling – 24K BTU, 2-ton capacity ideal for small to medium homes.
-
High Energy Efficiency – 18.1 SEER2 rating delivers strong performance while reducing energy costs.
-
Complete System with Lineset – Heat pump condenser with ducted air handler and 15 ft. R-454B No-Vac lineset for simplified installation.
-
Durable & Reliable – Built for consistent, long-term operation.
-
Flexible Installation – Designed to integrate seamlessly with standard ducted HVAC setups.
Q&A
Q: What is the cooling and heating capacity of this system?
A: The MRCOOL MVP-24-HP-230A15 delivers 24,000 BTU (2 ton) capacity, ideal for small to medium homes.
Q: What efficiency rating does it support?
A: This system operates at 18.1 SEER2, providing energy-efficient cooling and heating.
Q: What components are included?
A: It includes a heat pump condenser, ducted air handler, and 15 ft. R-454B No-Vac lineset, ensuring a complete and easy-to-install HVAC solution.
Q: Can it provide both heating and cooling?
A: Yes, it functions as a heat pump, delivering reliable year-round comfort.
Q: Who is this system ideal for?
A: Perfect for homeowners and contractors seeking a high-efficiency, ducted central split system with simplified installation.
Q: Is professional refrigerant charging required?
A: No, the No-Vac lineset allows for installation without professional evacuation or charging.
Maintenance Tips
-
Replace or clean air filters every 1–2 months to maintain proper airflow.
-
Keep outdoor condenser free of leaves, dirt, and debris.
-
Inspect ductwork for leaks or blockages to ensure efficiency.
-
Check refrigerant lines, electrical connections, and lineset integrity regularly.
-
Flush condensate drain lines to prevent clogs and water damage.
-
Schedule annual professional maintenance for optimal performance and system longevity.
