Description

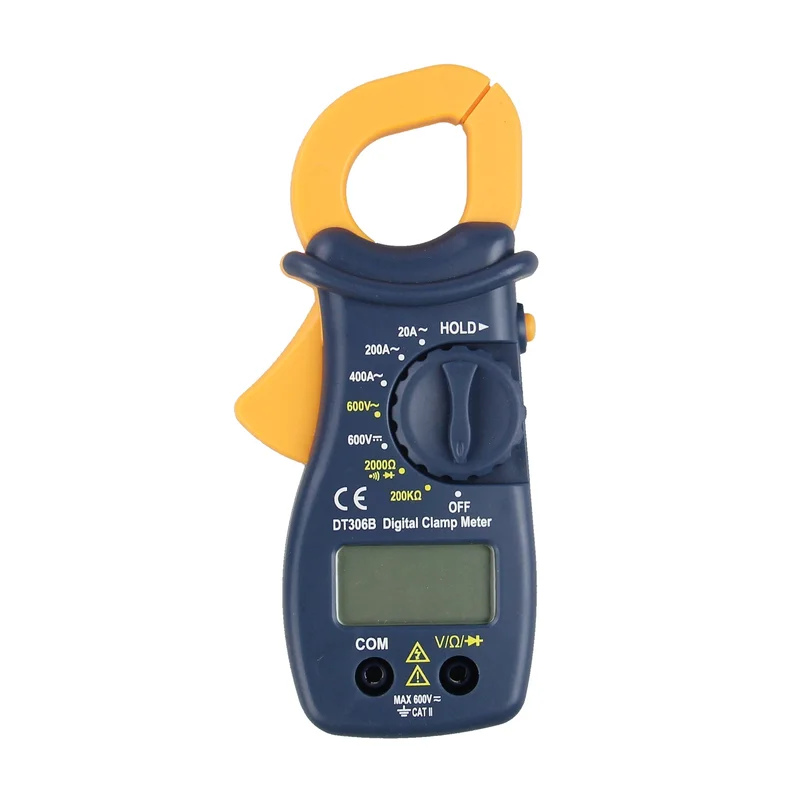

Current clamp Voltage tester
Current tester for appliances and electrical installations
Practical aid for every do-it-yourselfer
For measuring voltage (AC and DC), amperage and resistance
With diode and continuity test
Contactless and safe measurement of amperage
High measuring accuracy
HOLD button for easy reading of the measured value
Compact, handy design
Measuring leads included
Technical data:
Material: plastic
Colour: according to illustration
Measuring range DC V: 600 V (resolution: 1 V, measuring accuracy: ±1.0 %)
Measuring range AC V: 600 V (resolution: 1 V, measuring accuracy: ±1.2 %)
Measuring range AC A: 20 A (resolution: 10 mA, measuring accuracy: ±3.0 %)
Measuring range AC A: 200 A (resolution: 100 mA, measuring accuracy: ±2.5 %)
Measuring range AC A: 400 A (resolution: 1 A, measuring accuracy: ±2.5 %)
Measuring ranges resistance: 2000 (resolution 1 , accuracy: ±1.2 %)
Measuring ranges resistance: 200 k (resolution 100 , accuracy: ±1.2 %)
Max. Clamp opening: 35 mm
Max. measurable conductor diameter: 30 mm
Battery operated: 2 x AAA battery (included in delivery)
Display size: 3.6 x 1.9 cm (W x H)
Dimensions: 15.1 x 7 x 3.4 cm (H x W x D)
Certificate: IEC-61010-1 (CAT II 600 V)
