Description
Pioneer Multi Zone 9,000 BTU Quantum Ultra Ceiling Concealed Indoor Section Ductable Mini-Split Wi-Fi Inverter++ Air Conditioner Heat Pump 230V – RT009GLSILCFHG-10S
- Part Number: RT009GLSILCFHG
- Power Supply: 208~230V, 60Hz, 1Ph
- Cooling Capacity: 9,000 BTU/h
- Heating Capacity: 9,000 BTU/h
- Suitable Area: 250~350 sq ft
- Air Flow (Turbo/Hi/Med/Lo/Mute): 335 / 305 / 276 / 182 / 160 CFM
- Sound Level (Turbo/Hi/Med/Lo/Mute): 43 / 41 / 39 dB(A)
- Product Dimensions (WDH): 27″-1/2 x 19″-1/4 x 7″-7/8 Inches
- Carton Dimensions (WDH): 35″-1/2 x 21″-7/8 x 9″-7/8 Inches
- Net / Gross Weight: 33.1 / 40.8 lbs
Compatibility
- Dual (2) Zone Condenser: YN020GLSI24M2G
- Triple (3) Zone Condenser: YN030GLSI24M3G
- Quad (4) Zone Condenser: YN040GLSI24M4G
- Quint (5) Zone Condenser: YN050GLSI24M5G
Manuals
- Technical Brochure
- User & Installation Manual
Included

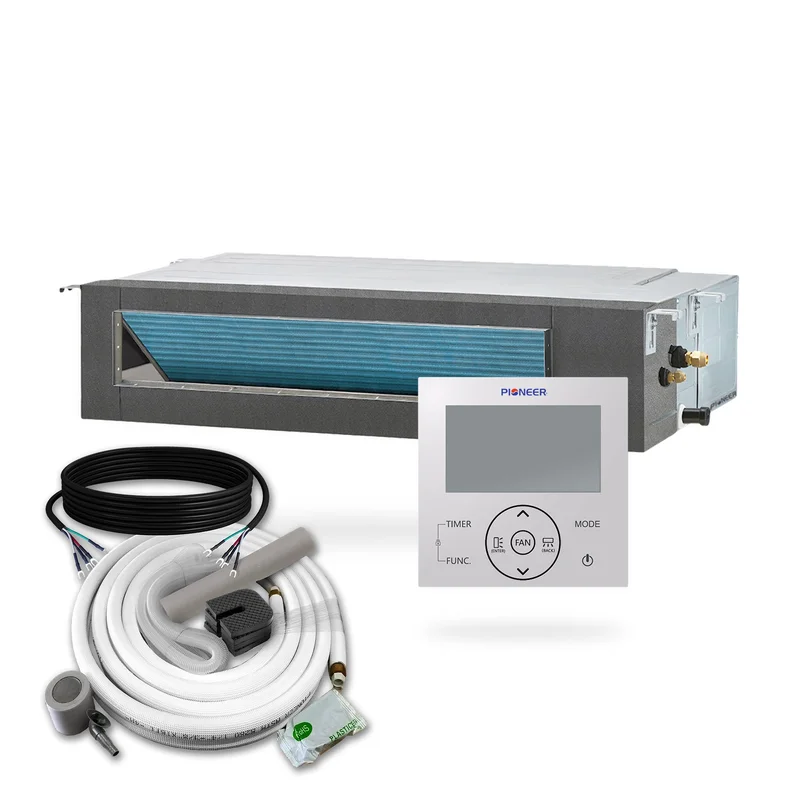

- Indoor Unit
- Wireless Remote Control
- Wi-Fi Module w/ Free App
- Full Installation Kit (unless „No Installation Kit“ is selected)
- Flare Connection Leak Guard Sealer
- Installation Manual
- User’s Manual
What our Experts Think
-
Excellent concealed multi‑zone flexibility: Designed as a ductable ceiling‑concealed indoor unit that pairs with Multi‑Zone outdoor systems, this 9,000 BTU heat pump delivers discreet, flexible installation for finished interiors, offices, or open spaces.
-
Smart inverter performance & Wi‑Fi control: Fully DC inverter‑driven airflow provides smooth temperature modulation, while the built‑in Wi‑Fi module lets you control comfort remotely via the Pioneer Airlink app.
-
Compact design, powerful airflow: Ultra‑thin profile (under 8 in. height) and high static pressure duct support help push conditioned air farther with quiet operation (~39‑43 dB).
-
Integrated condensate management: Built‑in drain pump lifts drainage up to 30 in., offering installation flexibility without extra parts or pumps.
-
Precision comfort & quiet operation: Tight temperature tolerance (± 2°F) and low sound levels make this ideal for living rooms, bedrooms, conference areas, and hospitality spaces.
-
Broad compatibility: Works with a range of Pioneer multi‑zone outdoor units (2‑, 3‑, 4‑, or 5‑zone systems), giving you scalable zoning flexibility for varied floorplans
Q&A
Q1: What type of system is this Pioneer model?
A: It is a ceiling-concealed, ductable indoor mini-split unit with integrated heat pump, designed for multi-zone climate control.
Q2: What cooling and heating capacity does it provide?
A: Provides 9,000 BTU cooling with efficient heat pump heating, ideal for small to medium rooms.
Q3: How energy-efficient is this unit?
A: Features inverter++ technology, offering precise temperature control, quieter operation, and reduced energy consumption.
Q4: Is this unit compatible with multi-zone setups?
A: Yes, it is Multi Zone Quantum Ultra compatible, supporting integration with multiple indoor units for centralized control.
Q5: What electrical requirements does it have?
A: Operates on 230 V single-phase power, suitable for standard residential or commercial circuits.
Q6: Does it support smart controls?
A: Yes, includes Wi-Fi connectivity for remote operation via smartphone or smart home systems.
Q7: What installation style does it support?
A: Designed for ceiling-concealed ductable installation, minimizing visual impact while providing even airflow.
Q8: Can it provide heating in colder climates?
A: Yes, the heat pump supports low-ambient heating for year-round comfort.
Q9: What indoor unit features enhance comfort?
A: Includes multi-directional airflow, washable filters, and quiet operation for efficient indoor climate management.
Q10: What space is this system best suited for?
A: Ideal for small offices, bedrooms, or medium residential spaces, especially where ceiling-concealed installation is preferred.
Maintenance Tips
-
Clean indoor air filters every 2–4 weeks to maintain airflow, efficiency, and indoor air quality.
-
Keep the ceiling-concealed unit and duct connections free of dust and debris to optimize airflow and inverter performance.
-
Inspect condensate drain lines and pan regularly to prevent leaks or water damage.
-
Check refrigerant lines, wiring, and mounting annually for safe and reliable operation.
-
Use the self-clean cycle periodically to reduce moisture buildup and prevent mold or odors.
-
Maintain adequate clearance in the ceiling plenum for proper air distribution and system efficiency.
-
Schedule professional service yearly for inverter diagnostics, refrigerant checks, and overall system optimization.
