Description

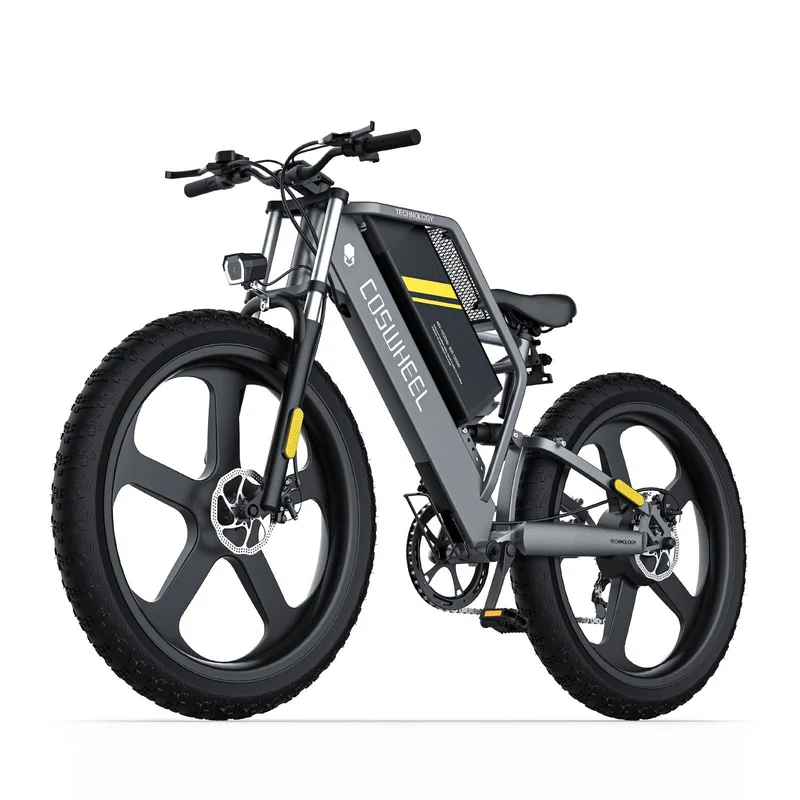

T26 EBIKE
Performance
- Top Speed: Class 2/3, 28 Mph (45Km/h)
- Range: 30-50+miles (48-80km) in Class-2 throttle-only mode (pure electricity); 52-87+miles (84-140km) in Class-1 PAS (pedal assist)
- Motor: 48V Peak 1500W (Rated 1000W) Brushless Rear Hub Motor 80N.m
- Battery: 48V 15/20/25Ah Battery (Lithium 18650 Cells)
- Energy: 720/960/1200Wh
- Front Suspension: 26″ Full Aluminum Double Shoulder Snow Suspension, 80mm Travel
- Rear Suspension: 850 Pounds, 180mm Travel
- Brakes: Double Piston Oil Brake, Equipped with 180mm Stainless Brake Disc
- Tires: CHAOYANG Off-road Tire 26″ * 4.0″ H5176 30TPI with AV+ Lining Belt
- Throttle: Grip Twist Throttle
Electronics
- Charger: 48V3A Charger
- Charging Time: 3.5-8.0 Hours
- Display: Easy Read LCD Display
- Controller: 48V 28A
- Front Light: Classic Angel Eye Headlight, 120 LUX
- Rear Light: LED
- Pedal Assist: 5 Levels
- Sensors: Speed Sensor
Components
- Frame: Hydroformed Triple-Butted 6061-T6 Aluminium Alloy
- Pedal: Aluminum Alloy Pedal, with Reflect-light, Axis 9/16 x2
- Crank: 1/2 „*3/32″*46T 7-speed ED Tooth Plate
- Rear Derailleur: Shimano 7-Speed
- Chain: 7-speed Anti-rust, 1/2″ * 3/32″
- Handlebars: Bend Handlebar, φ620*31.8*H:30
Geometry
- Suitable Height: 5’3″ – 6’5″
- Seat Height: 35.4″ (90cm)
- Bike Height: 47.3″ (120cm)
- Wheelbase: 49.2″ (125cm)
- Handlebar Width: 25.6″ (65cm)
- Bike Weight: ≥88lbs (with Battery) (≥40kg)
- Maximum Load: 330lbs (150kg)
- Safe Load: 265lbs (120kg)
- Overall Size: 70.9″ * 25.6″ *47.3″ (180*65*120cm)
- Package Size: 65″ * 13.4″ * 35.4″ (165*34*90cm)
